Moxa 8 port PC/104 RS232 module w/921.6K baudrate
Our Price: $220.69
Contact us for Partner Pricing. (more info)



Availability:: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: CA-108

Description Technical Specs Drivers & Downloads

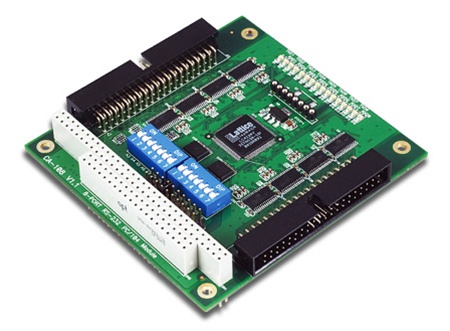

The CA-108 PC/104 module is a reliable, high performance, multiport serial communication solution that has 8 RS-232 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and the CA-108's versatile driver support makes the module suitable for a wide range of applications.

Features
  • 921.6 Kbps maximum baudrate for super fast data transmission
  • On-chip H/W and S/W flow control
  • Built-in 15 KV ESD protection
  • IRQ and I/O settings are jumper and DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Windows CE 5.0 and Windows XP embedded operating systems supported
  • Wide temperature model available for -40 to 85°C environments
